| ABM Innova Using laser in the front of the machine |
You can successfully, use your laser in the front of the machine to do motifs in each block.
You will need a few things. Call me or ABM to order. 281-793-1777
Laser extender cord
Half Moon "Bolt'
Unplug the laser, from the machine.
Remove the laser from the laser holder/adapter.
Remove the laser holder/adapter from the post.
Remove the laser attachment post from its existing location
This attachment post is very tight, you may not be able to unscrew it with your fingers
Take an allen wrench or the like, and put it in the hole on the attachment post, and crank it, you may
find this an easy way to loosen it.

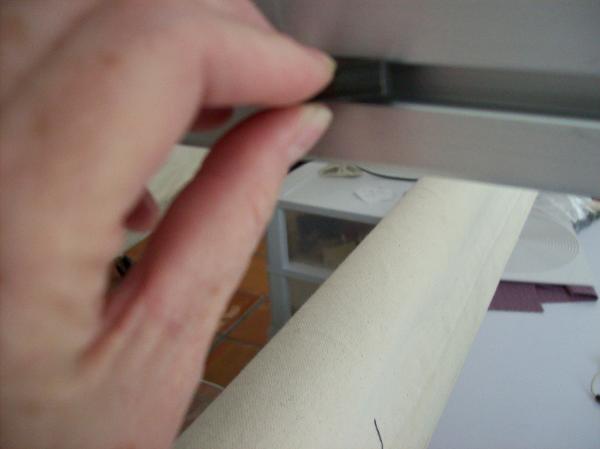

Peel off the cosmetic piece of plastic on the top of the machine, right side.
Insert the new piece of hardware. It is a half moon shaped "Bolt".
Insert and screw in the laser attachment post into this "Bolt"
Re-attach the laser holder/adapter to the laser attachment post.
Re-attach the laser to the laser holder/adapter
Plug the laser into the extender cord.
Plug the laser extender cord into the machine.
Have fun quilting motifs from the front of the machine.
Call if you have any questions or need more pictures. I will help you! Carrie 281-793-1777
WARNING and FYI, If you do not get the extender cord, and choose to stretch your existing laser cord to the
front, you may find that your needle up, needle down button will not work.
You will need a few things. Call me or ABM to order. 281-793-1777
Laser extender cord
Half Moon "Bolt'
Unplug the laser, from the machine.
Remove the laser from the laser holder/adapter.
Remove the laser holder/adapter from the post.
Remove the laser attachment post from its existing location
This attachment post is very tight, you may not be able to unscrew it with your fingers
Take an allen wrench or the like, and put it in the hole on the attachment post, and crank it, you may
find this an easy way to loosen it.
Peel off the cosmetic piece of plastic on the top of the machine, right side.
Insert the new piece of hardware. It is a half moon shaped "Bolt".
Insert and screw in the laser attachment post into this "Bolt"
Re-attach the laser holder/adapter to the laser attachment post.
Re-attach the laser to the laser holder/adapter
Plug the laser into the extender cord.
Plug the laser extender cord into the machine.
Have fun quilting motifs from the front of the machine.
Call if you have any questions or need more pictures. I will help you! Carrie 281-793-1777
WARNING and FYI, If you do not get the extender cord, and choose to stretch your existing laser cord to the
front, you may find that your needle up, needle down button will not work.

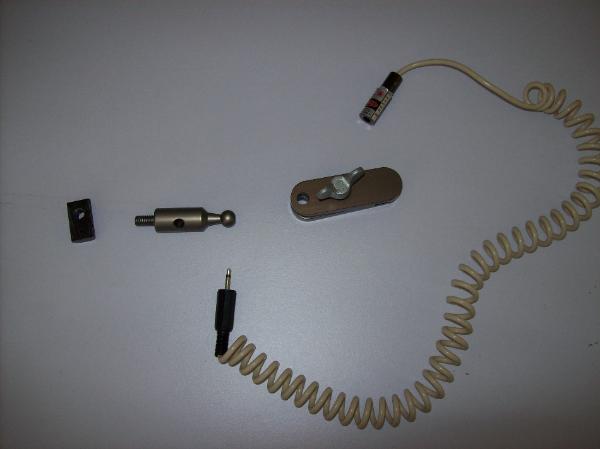

| Laser Attachment Post |

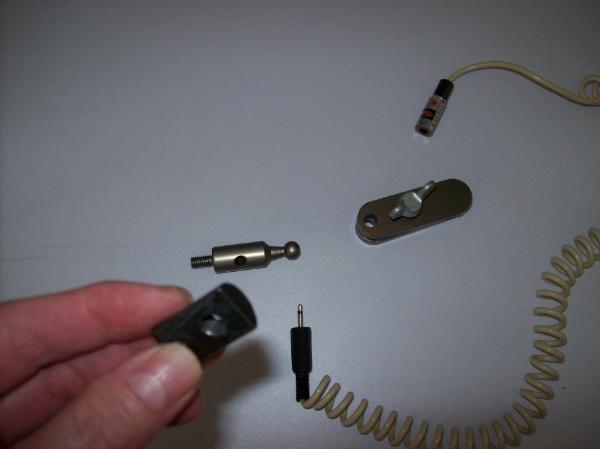

| New hardware needed |
Laser holder/adapter
Laser
| Laser Plug |
