Channel Locks For Hinterberg Frame

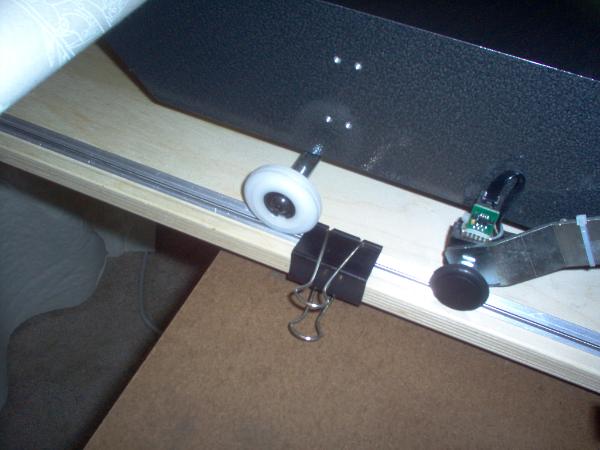

Put a 1 1/2" binder clip, behind the
wheel, push your wheel up against this
brake, to run a perfectly straight,
horizontal line of stitching.
Horizontal Channel Lock
Fun Quilter
Vertical Channel Lock

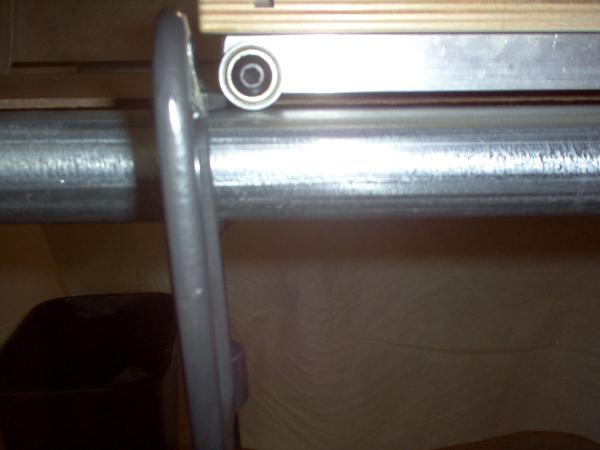

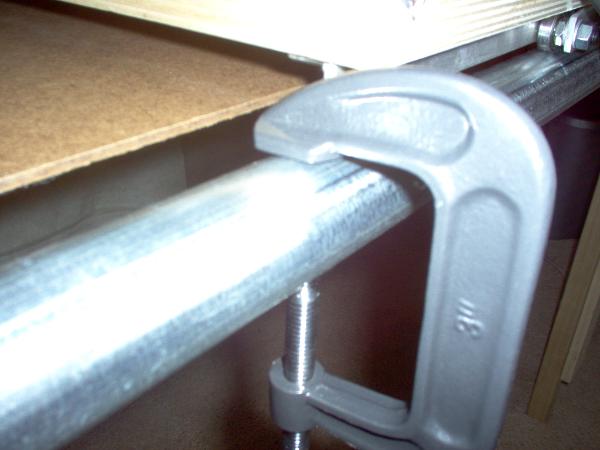

Using a 3" C-clamp, attach it to your
rails.
Put your needle in the down position
where you want your vertical channel
lock to be.
Put the C-clamp, up against the
wheels.  Hold your carriage against the
C-clamp as you sew, and a straight
channel lock of stitching will form
Horizontal Channel Lock
Voyager

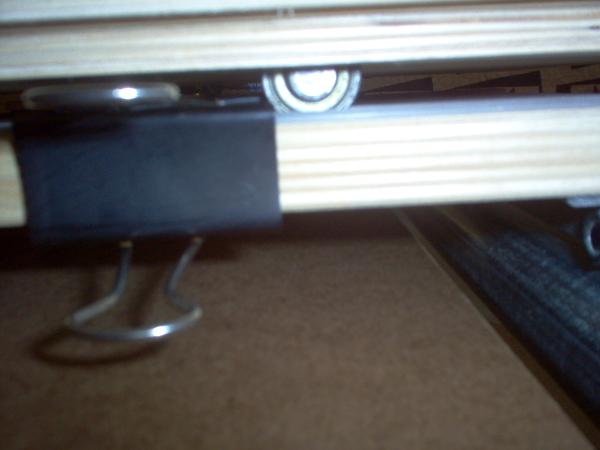

Put a 1 1/2" binder clip,  between the
top and bottom carriage, and then
behind the wheel, push your wheel up
against this brake, to run a perfectly
straight, horizontal line of stitching.
Call if you have questions.

Carrie Dugan
CarrieDugan@QuiltFrog.com
281-793-1777
www.QuiltFrog.com
